| Well, I suspected the alternator bolt configuration was incorrect, and it is. Should be a star washer between the bolt head and the flat washer. Currently has a lock washer. There should be no lock washer. We'll get that fixed. |
 |
| Here's the correct "Harrison" foil sticker placement from a '67 427/390 car in SoCal |
 |
| Here's Thumper w/no decal. We'll get that corrected. |
 |
| Removed the carb in preparation of the new one. Time to clean up/re-paint the intake manifold... |
 |
| Did a bunch of wiper/washer motor testing... |
 |
| Passenger "squirter" was plugged. Had to use a needle. All fixed. |
 |
| Noticed a small spot of loose weatherstrip on driver door. Fixed. |
 |
| We were going to 'touch up' the 5 rivets on both doors, but judging guide is confusing me. Have email out. They're black, but judging guide indicates they shouldn't be?? |
 |

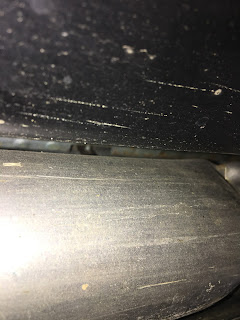

| Took a gazillion photos of the side-pipe cutouts. None really turned out great, but this was probably the best one. |
 |
| Got the new oil fill cap (correct one on the left) |
 |
| Incorrect tire tub (no fiberglass fibers) |
 |
| ... and washers should be black |
 |
| Here's the correct bolts & black phosphate washers |
 |
| Looking it over, we've decided to use the new lid (on left) as well. |
 |

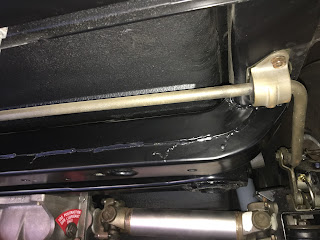

| We're constantly blown away at just how clean the underside of this car is. Amazing. |
 |
| Heat riser. Passenger side, facing inward. |
 |
| Front springs had two tags ("EB" and "EF"). Should only have one "EB" tag, so we removed the other. |
 |
| While doing the springs, we noticed the engine ground strap had no star washer. |
 |
| Fixed. |
 |
| We replaced the incorrect oil drain plug w/the correct one. |
 |
| Star washer on accelerator linkage was in wrong spot. S.B. bolt head, ground strap, star washer. |
 |
| Corrected. |
 |
| Chevy orange overspray on spark plug boots. Incorrect. |
 |
| And on this one... |
 |
| And this one. Cleaned them w/acetone. |
 |
| We noticed the evaporator box @ firewall should have "Harrison" sticker. |
 |
| Ordered it. |
 |
| Spent Saturday working on fixing the Hi-Beam bulb issue |
 |
| Underdash. Dropped steering column and A/C ducting, and hood release bracket. |
 |
| Noticed issues. Bolts w/nuts were not suppose to be used here. |
 |
| We also found additional gauge cluster lights unhooked/fallen out. Fixed 3 bulbs. |
 |
| We also found the brake light condenser unhooked. Got it fixed. |
 |
| All dash lights working! |
 |

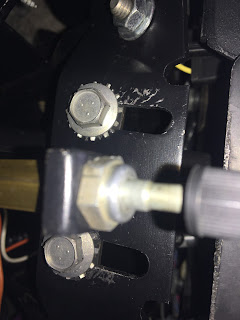

| Underdash, this ground wire also had the star washer in the wrong location! |
 |
| Fixed it. Bolt head, ground strap, star washer. |
